- Functional Description
- Specifications

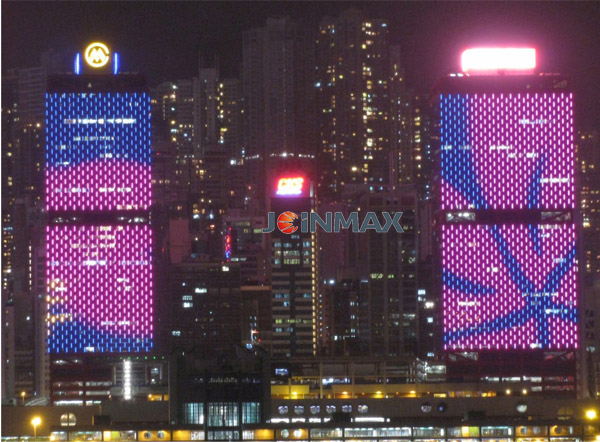

- Applications

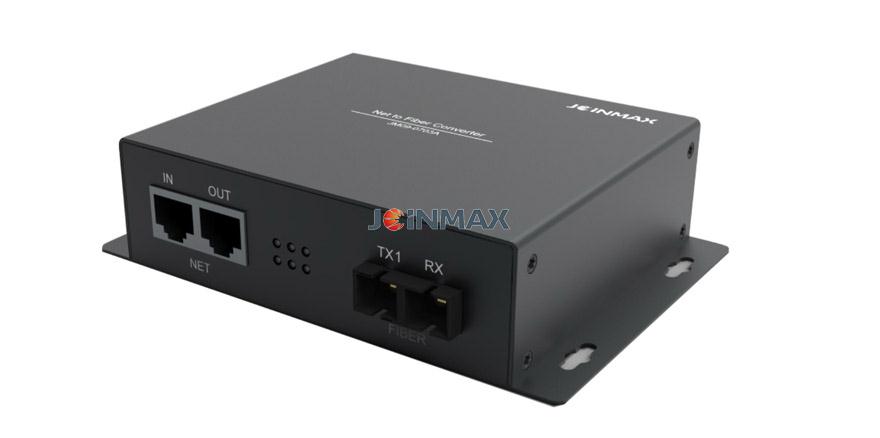

? Fibre optic transceiver provides signal exchange in between Joinmax’s specialised network data signals and fibre optic 100BaseFX (SC/ST interface). With single-mode fibre optic, it allows the data transfer between the Data Processor and DDU to go up to
3.Output signal: Joinmax network data signal;
4.Support single-mode or multi-mode optical fibers;
5.?DC5V Low Power Voltage.
Technical Specification | Item | 參數Parameter |
Identification | Model | JM09-0719 |
Electrical Property | Input Voltage | DC 5V |
Power Consumption | 10W | |
Signal Input ? | Optical Fiber Input Interface | 1 X SC |
Network Input Interface | 1 X RJ45 | |
Signal Output | Optical Fiber Output Interface | ?1 X SC |
? | Network Output Interface | 1 X RJ45 |
System Function | Control Capacity | （1）?????? 網線：CAT5e類網線，距離100米 CAT5e type wire, distance up to （2）?????? 多模光纖：62.5/125μm MMF，光波長1310nm, 1550nm, 850nm ，距離500米 62.5/125μm MMF; 1310nm, 1550nm, 850nm wavelength; distance up to （3）?????? 單模光纖：9/125um SMF，光波長1310nm FP/DFB or 1550nm DFB，距離20公里 9/125um SMF; 1310nm FP/DFB or 1550nm DFB wavelength; distance up to |
Control Function | Exchange data with Joinmax’s network, data transmission can be fully transparent | |

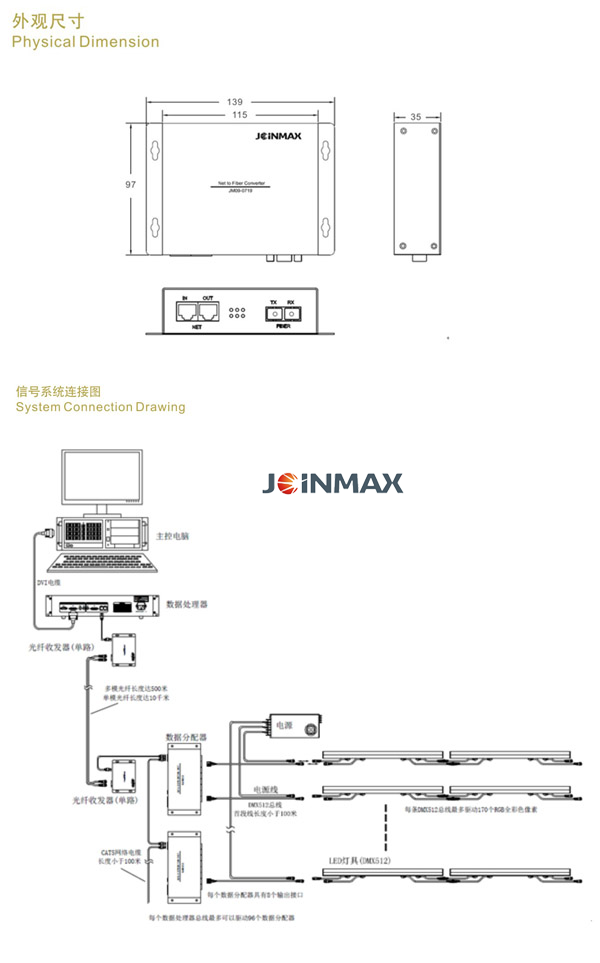

Physical Property ? | Size(L*W*H) | 139×97× |
Weight | ||
Housing Material | Aluminum | |
Operating Temperature | ||
Operating Humidity | 0～90% 不凝露 0～90% | |
Safety | Operating Environment | Indoor |
Certificate | CE，UL，CCC |
Equipment? Name | Model |
Main Control Computer | IPC-810E |
Data Processing Unit | JM09-0210 |
Fiber Transceivers | JM09-0719 |
Data Distribution Unit | DMX 512:JM09-0335 |
LED Lighting Fixture | DMX512 Interface |
-
