- Functional Description
- Specifications

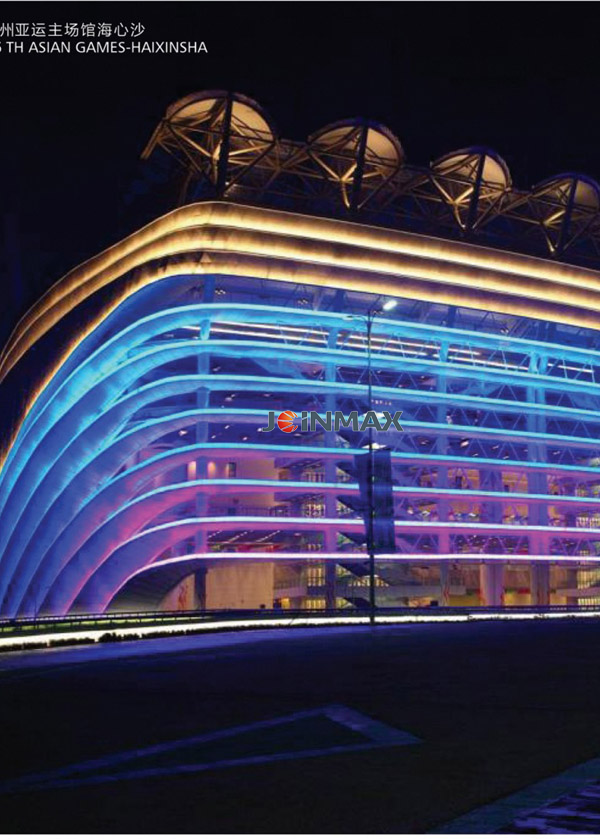

- Applications

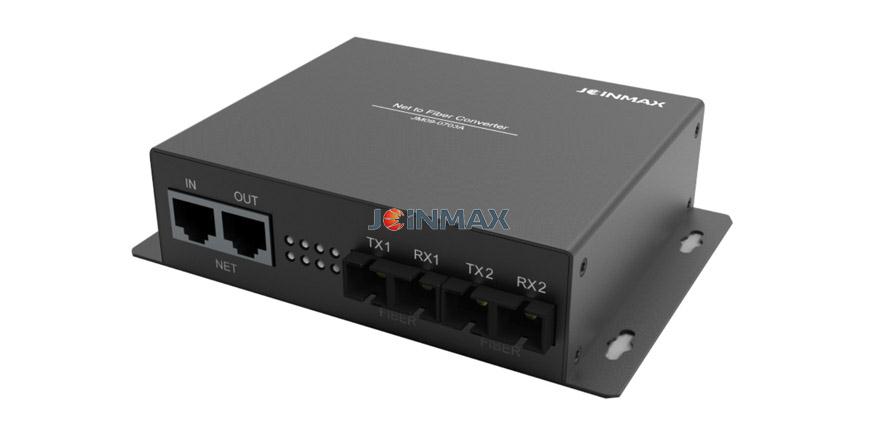

??The Loop fibre optic transceiver in the lighting control system provides a closed loop fibre optic connecting system. When an error occurs, the system will detect the direction of the data transfer then using another channel of fibre optic transfers the data to the other side. This can guarantee reliable transmission. Features of the Loop fibre optic transceiver are as follows:
1.Suitable for the specialized network signal of Joinmax’s lighting system;
2.Loop fiber network, Automatic checking with signal change, contains both the transmit and receive channels;
3.Output signal: Joinmax network data signal;
4.Support single-mode or multi-mode optical fibers;
5.Reliable system connection.
Technical Specification | Item | Parameter |
Identification | Model | JM09-0718 |
Electrical Property | Input Voltage | DC 5V |
Power Consumption | 10W | |
Signal Input ? | Optical Fiber Input Interface | 2 X SC |
Network Input Interface | 1 X RJ45 | |
Signal Output | Optical Fiber Output Interface | ? 2 X SC |
? | Network Output Interface | 1 X RJ45 |
System Function | Control Capacity | （1）?????? 網線：CAT5e類網線，距離100米 CAT5e type wire, distance up to （2）?????? 多模光纖：62.5/125μm MMF，光波長1310nm, 1550nm, 850nm ，距離500米 62.5/125μm MMF; 1310nm, 1550nm, 850nm wavelength; distance up to （3）?????? 單模光纖：9/125um SMF，光波長1310nm FP/DFB or 1550nm DFB，距離20公里 9/125um SMF; 1310nm FP/DFB or 1550nm DFB wavelength; distance up to |
Control Function | Exchange data with Joinmax’s network, data transmission can be fully transparent | |
數據傳輸能力 | 光纖數據傳輸方向自動監測和轉換 | |

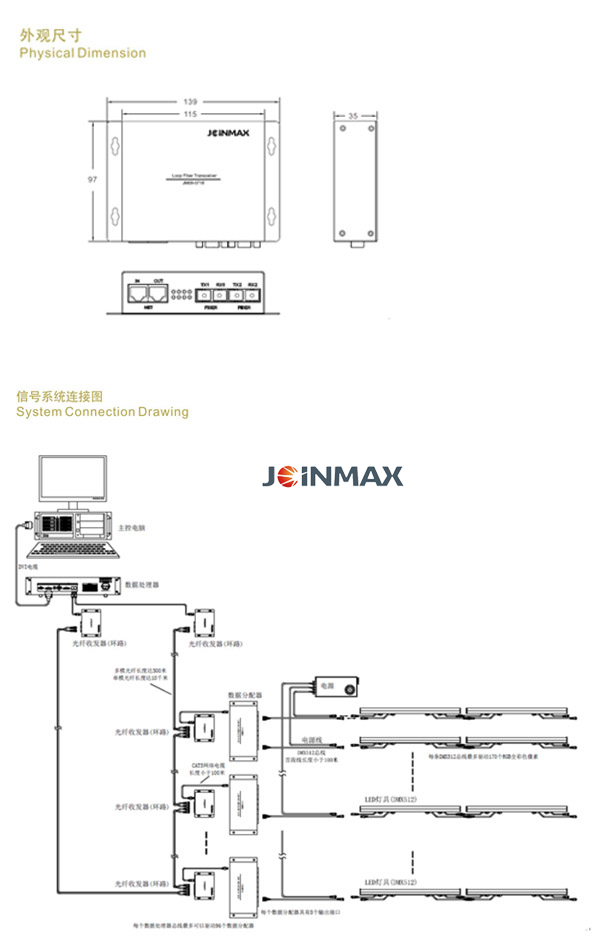

Physical Property ? | Size(L*W*H) | 139×97× |
Weight | ||
Housing Material | Aluminum | |
Operating Temperature | ||
Operating Humidity | 0～90% 不凝露 0～90% | |
Safety | Operating Environment | Indoor |
認證Certificate | CE，UL，CCC |
Equipment? Name | Model |
Main Control Computer | IPC-810E |
Data Processing Unit | JM09-0210 |
Fiber Transceiver (Loop) | JM09-0718 |
Data Distribution Unit | DMX 512:JM09-0335 |
LED Lighting Fixture | 帶DMX512接口 DMX512 Interface |
-
