  • Functional Description
  • Specifications
  • Applications

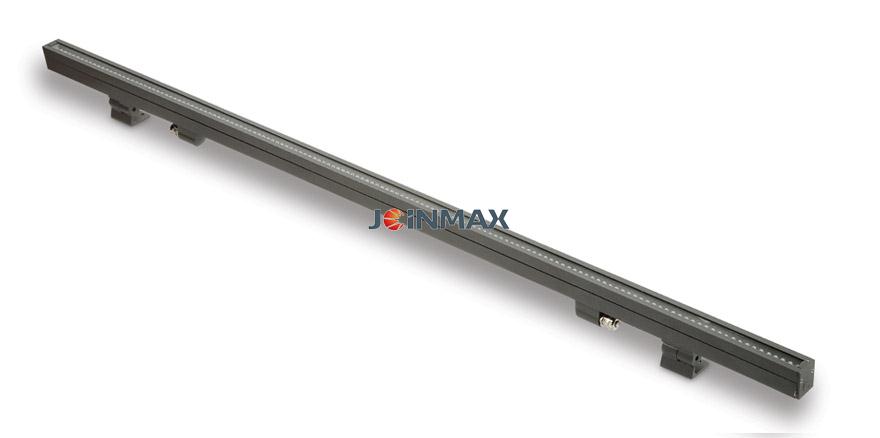

1.Small-power project lamp, this product is designed as a highly-effective project light product for small-space room lighting needs. Employ SMD with 120 degree angles attached to LED as light source and light distribution is more even, serve as the best option for small-space light.
2.Employ the low-voltage electricity supply of the external power, better safety and reliability, satisfy the lighting needs in small space.
3.Multiple color available with flexible design and application including warm white, nature white, cold white, blue and full color for customers to choose from based on their needs.
4.Provide 12V, 24V voltage based on environment needs, 12V lamp with better electricity and 24V with better load.
5.Employ the patented technology 【patent number:ZL 2010 2 0262526.4:ZL 2009 1 0223737.9】write the address in the controlling end after finishing the lamp installation, more convenient installation and better reliability.

技術分類

Technical Classification

項目規格?

Item

參數?

Parameter

電氣性能

Electrical Properties

供電電壓?Input voltage

DC24 V/ DC12V

最大功耗?Max.power consumption

12 W

光學性能

?

Optical Properties

光源組成LED composition

48SMD 31LED

48 pcs of SMD LED lamps

光色?LED Color

全色?Fullcolor

光通量?Luminous Flux

240 lm

光束角?Beam Angle

120°

顯示單元?Display Unit

8像素/?8 pixel/m

亮度等級?Brightness Grade

每種顏色256??256 grade per color

光通維持率luminous maintenance rate

50000 hour@70%

控制方式

Control Mode

控制接口?Interface

DMX512

控制系統?Control System

中鳴科技Easyplay5.0 (Joinmax)

結構性能??

?

Structure

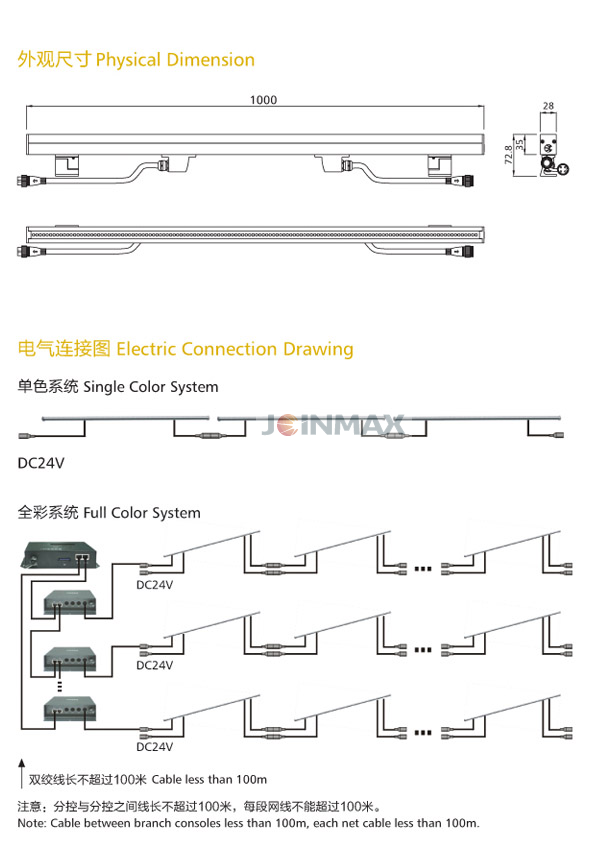

尺寸(xx)Dimension (L*W*H)

1000X28X72mm

重量?Weight

550g

燈體材料?Material

擠壓鋁型材?die-casting aluminum

表面顏色?Surface Color

鋁原色?Grey aluminum

燈具連接?Connection

6芯防水接插件?6-pin waterproof connector

防護等級

Protection Rating

IP65

工作溫度?Work Temperature

-20℃~50

工作濕度?Work Humidity

090%

最大級聯數Max. cascade connection qty

12支(DC24V8支(DC12V? 12pcs (DC24V)? 8pcs (DC12V)

?

使用環境?Work Environment

干燥/潮濕?dry/humid

安全性能Safety

認證?Certificate

CE
