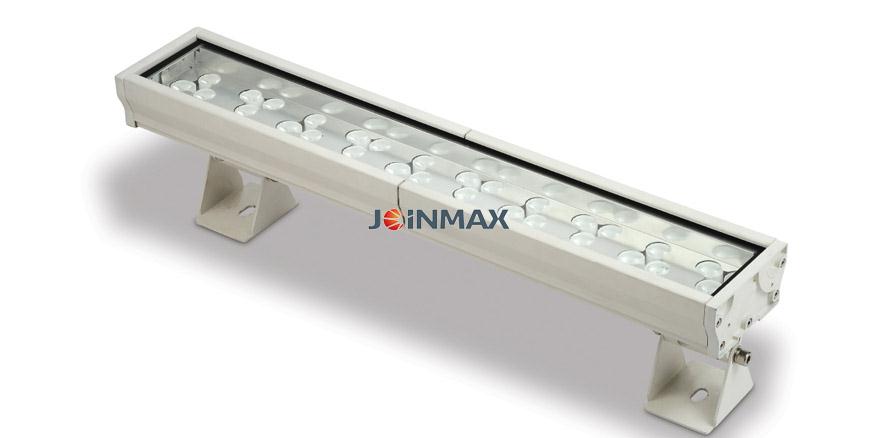

1. The large-power project light series product is one high performance-price ratio effective product with large-power???? LED and high-efficient lens, suitable for the lighting? in and outside.
2.This series of product employs the high-effective outdoor electricity supply method with waterproof ability, reliable power connection and easy maintenance.
3.multiple color available with single white, amber and full color to satisfy the different needs of customers.
4.Employ the highly-effective diamond optics lens design, which could blend the mixing effect of the red, blue, green LED lights evenly and perfectly, lighten further and larger area. The structure could reach ideal lighting effect by adjusting reflecting board.
5. Built in DMX512 decoding and drive circuit with online DMX512 address which could write address in the controlling end after finishing the lamp installation, more convenient installation and better reliability.

技術分類 Technical Classification	項目規格 Item	參數 Parameter
電氣性能 Electrical Properties	供電電壓 Input voltage	AC100-240 V
	最大功耗 Power Consumption	90W
	功率因數 Power Factor	≥0.90
光學性能 Optical Properties ? ?	光源組成 LED composition	60顆大功率LED 60 pcs LED lamps
	光色 LED Color	紅色/綠色/藍色全彩色或白色? red/green/blue/white
	最大光通量 Fuminous flux	1500lm-2700 lm
	光束角 Beam Angle	可選25°/40°/60°/15°X50° 25°/40°/60°/15°X50° are optional
	顯示單元 Display Unit	4 pixel/m
	亮度等級 Brightness Grade	每種顏色256?級 256 grade per color
	光通維持率 luminous maintenance rate	50000 hour（@70%）
控制方式 Control Mode	控制接口 Interface	DMX512
	控制系統 Control System	中鳴科技 Easyplay5.0 (Joinmax)

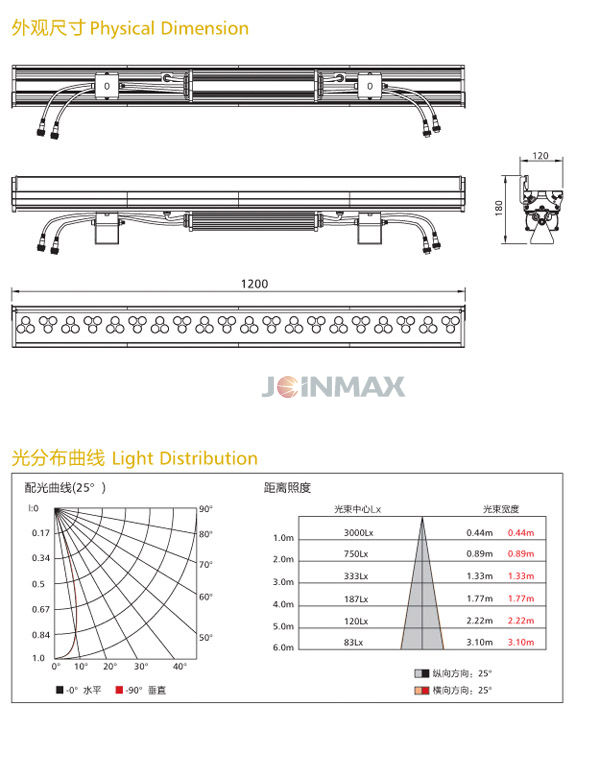

結構性能 Structure	尺寸(長x寬x高) Dimension (L*W*H)	1200X120X180mm
	重量 Weight	8.5Kg
	燈體材料 Material	擠壓鋁型材 die-casting aluminum
	表面顏色 Surface Color	深灰色 Deep grey
	燈具連接 Connection	4芯防水接插件，3芯電源電纜 4-pin signal cable 3-pin power cable
	防護等級 Protection Rating	IP65
	工作溫度 Work Temperature	-20℃～50℃
	工作濕度 Work Humidity	0～90%
	最大級聯數 Max. cascade connection qty	電源級聯20支 20pcs (power) 信號級聯?32支 32pcs (Signal)
	使用環境 Work Environment	干燥/潮濕 dry/humid
安全性能 Safety	認證 Certificate	CE
