  • Functional Description
  • Specifications

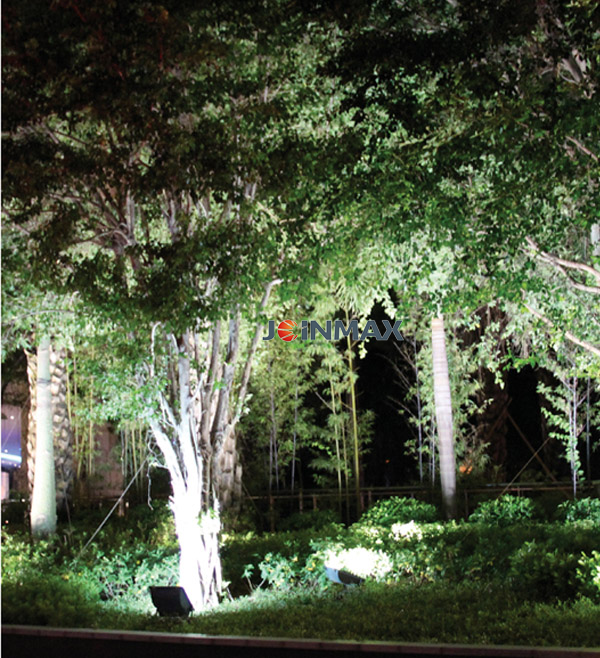

  • Applications

1. Streamlined feature combined with LED structure characteristics, compact and simple. Separated design of light source and electronic appliance, easy installation and repairs.
2. Three-phase separated body structure and function well independently at each power rate.
3. The radiator employs the aluminum alloy material with the best heat conductivity, excellent heat dissipation performance with optimized heat sink design and prolong the working-life of LED lamp.
4. Employ unique twice optical lens with over 95% luminous flux rate.
5. The diffuser employs superior steel glass with good light transmittance rate and no light change
6. Long-working life power drive to ensure over 50,000 hours working life with multiple protection function like short circuit protection , open circuit protection ,overheated protection to synchronize with LED light.
7. The light lamp could rotated within 1- 180 degrees and adjust with instruction and direction of light beam.
8. Light lamp protection grade IP65
9. Electric-shock safeguard:? category I
10. The light lamp contracture is totally compatible with the safety of the electronic appliance and accord to the EN60598 GB7000 criteria
11. The scenic lighting option 15°30°45°60°or other requirements


技術分類

Technical Classification

項目規格

Item

JZ06-105401-017

JZ06-307201-017

電氣性能

Electrical Properties

供電電壓

Input voltage

AC85-265V, 47-63Hz

AC85-265V, 47-63Hz

?最大功耗

Max Power Consumption

54W

72W

光學性能

Optical Properties

?

?

光源組成

LED composition

CREE 54x1

?

CREE 72x1

?

光色

LED Color

RGB

RGB

光通量

Luminous flux

2600lm

3600lm

光束角

Beam Angle

15°/30°/45°/60°

?

15°/30°/45°/60°

?

亮度燈具

Brightness Grade

每種顏色256

256 grade percolor

每種顏色256

256 grade percolor

光通維持率?????????

Luminous maintenance rate

50000 hour@70%

50000 hour@70%

控制方式

Control Mode

控制接口

Interface

DMX512???????????

?

DMX512

控制系統

Control System

中鳴科技

Easyplay5.0 (Joinmax)

中鳴科技

Easyplay5.0 (Joinmax)

結構性能

Structure

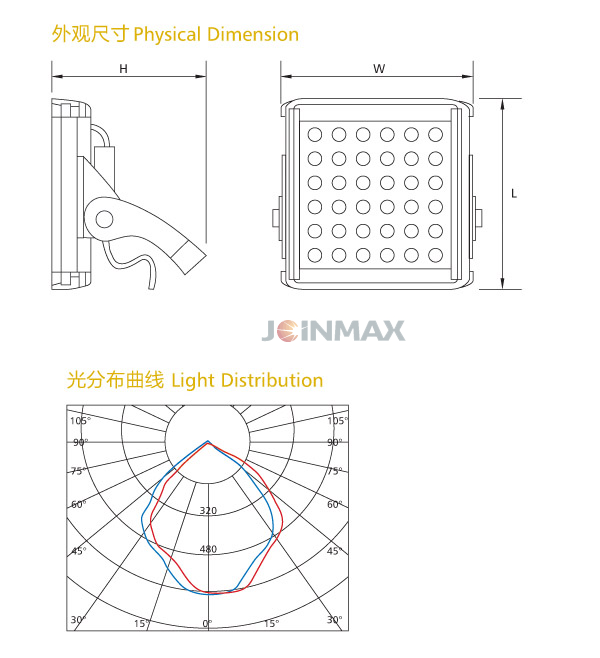

尺寸

Dimension (L*W*H)

493.5X349X179mm

629X349X179mm

重量

Weight

3kg

3.8kg

燈體材料

Material

鋁合金燈殼,抗UV鋼化玻璃燈罩

Aluminum alloy housing, anti-UV tempered glass lamp shade

表面顏色

Surface Color

灰色

Grey

灰色

Grey

燈具連接

Connection

公母接頭

公母接頭

防護等級

Protection Rating

IP65

IP65

工作溫度

Work Temperature

-30℃~50

-30℃~50

工作濕度

Work Humidity

1090%RH????

1090%RH??

使用環境

Work Environment

-20°C-40°C

-20°C-40°C

安全性能

Safety

防觸電等級

Class I

Class I
