- Functional Description
- Specifications

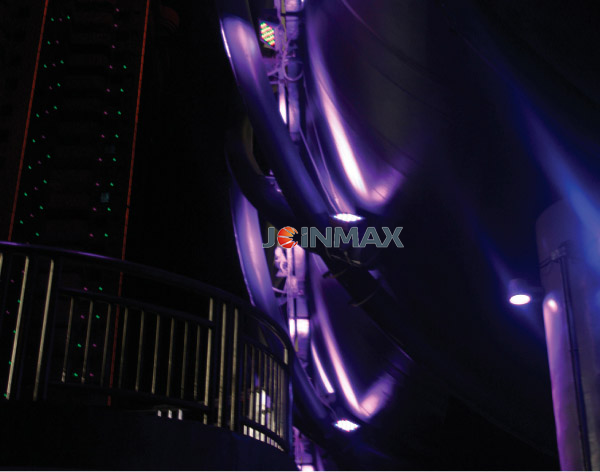

- Applications

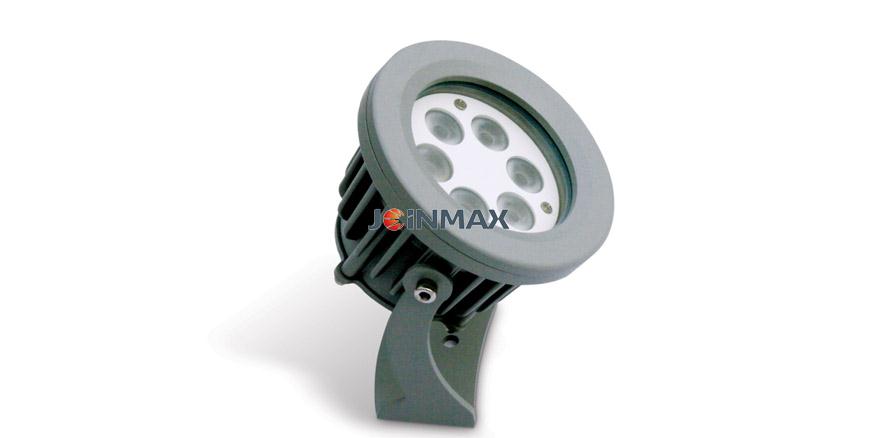

1. Design with a circle as the main body, incise the main elements with the straight lines so that to achieve the characteristics of streamlining, elegant ,power and soft combining effects.
2. The lamp is made from high-pressure casting aluminum
3. The lens is made from steel glass.
4. The lamp could be adjusted by angle with a range of 0-180 degree.
5.Light source: LED light ball, the maximum power: 9W
6. The lamp installation method could be divided into upper installation and lower installation
7. The lamp structure and electronic safety accord to EN60598 GB7000
? 技術分類 Technical?Classification | 項目規格 Item | 參數 Parameter |
電氣性能 Electrical?Properties | 供電電壓 Input?voltage | DC24V |
?最大功耗 Max?Power?Consumption | 3W/4.5W/6W/9W | |
光學性能 Optical?Properties | 光源組成 LED?composition | 3顆LED燈珠? 3?pcs?of?LED?lamp |
光色 LED?Color | 綠色/紅色/藍色 Red/green/blue | |
光通量? Luminous?flux | 255lm/380lm/480lm/700lm? | |
光束角? Beam?Angle | 15°/30°/45°/60° | |
亮度燈具 Brightness?Grade | 每種顏色256級 256?grade?percolor | |
光通維持率 Luminous?maintenance?rate | 30000?hour（@85%） | |
控制方式 Control?Mode | 控制接口 Interface | DMX512 |
控制系統 Control?System | 中鳴科技 Easyplay5.0?(Joinmax) | |

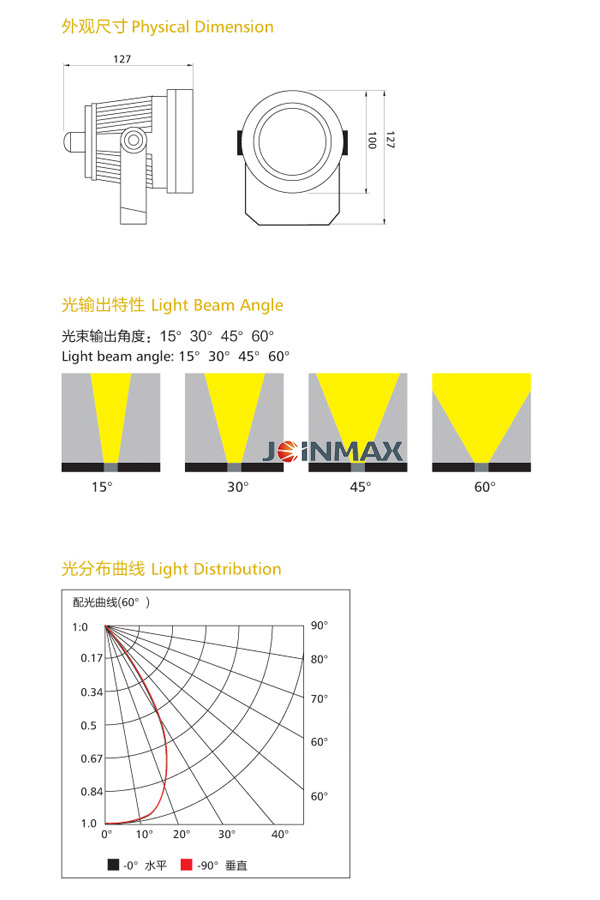

結構性能 Structure | 尺寸(長x寬x高)? Dimension?(L*W*H) | 100X127X125（mm） |
重量 Weight | 3.5kg | |
燈體材料 Material | 壓鑄鋁成型? Die-casting?aluminum | |
表面顏色 Surface?Color | Optional | |
燈具連接 Connection | 電纜連接 Cables | |
防護等級 Protection?Rating | IP65 | |
工作溫度 Work?Temperature | -20℃～50℃ | |
工作濕度 Work?Humidity | 0～90% | |
使用環境 Work?Environment | -20℃～40℃ | |
? ? | ||
供電方式 Input?Voltage | 發光顏色 LED?Color | 產品編號 Model |
AC85-265V 單色色溫 （Monochrome?Color?Temp）2700-6500K | 單色1W/顆??3顆?3W Single?color?1W/pcs??3pcs?3W | JM06-300302-017 |
單色1.5W/顆??3顆?4.5W Single?color?1.5W/pcs??3pcs?4.5W | JM06-300301-017 | |
單色2W/顆?3顆?6W Single?color?2W/pcs?3pcs?6W | JM06-300304-017 | |
RGB?3W/顆?3顆?9W RGB?3W/pcs?3pcs?9W | JZ06-300303-017 |
?
-
