  • Functional Description
  • Specifications
  • Applications

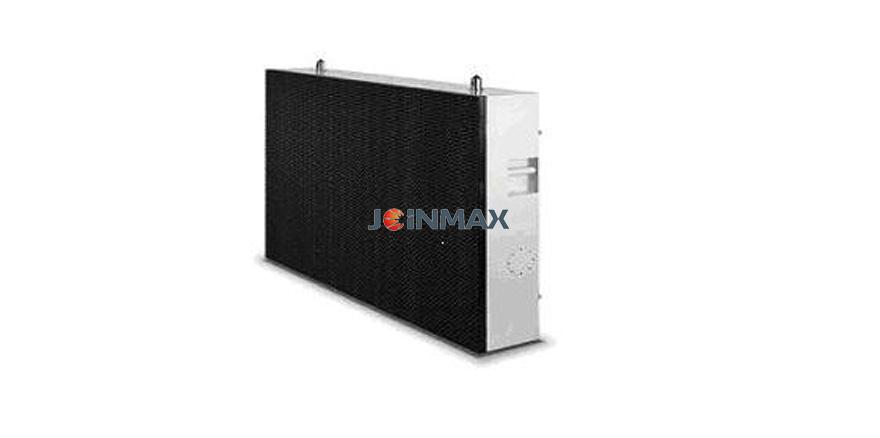

1. P12 outdoor full color screen is suitable for indoor use and display pixel is made up from red, green, blue ultra-high brightness LED with the light color. Video, cartoon and other multi-media forms as well as picture, word information could be demonstrated and choose the program source by shifting.
2. Screen play control software is easy to operate, initiate the computer once the broadcasted programs are set up and connected to electricity without any sophisticated initiating software to be configured.
3. The design of the whole system should take full considerations of customers` requirements on function, the design of software and hardware should be equipped with necessary function and be added with possible additional color debugging and light debugging function, the effects of light and color after configured is with 3% superiority.

4. The maintenance cost of display screen is relatively low and it is easy to maintain. In terms of module structure designing, impeccable protection measures are added to make sure the steadily functioning of display screen in different abominable seasons and environments besides ensuring high installation accuracy.

5. Simple maintenance, light weight, stable performance, long working-life, low fuel consumption

?

項目Item

單位Unit

參數Parameter

像素間距?Pixel Pitch

mm

12mm

像素密度?Pixel Density

pixel/?m2

6944

像素組成Pixel Composition

?

1R1G1B

模組解析度

64×48

視角?Viewing Angle

°

水平120°,垂直60°H 120°, V 60°

屏幕亮度?Brightness

cd/?m2

>7000?cd/?m2

對比度?Contrast

?

1000:1

顏色數?Colors

?

16.7 million

顏色灰級?Grey scale

Levels

14bit

亮度控制Brightness Control

Levels

100

換幀頻率?Video Frame Rate

Hz

60?Hz

刷新頻率?Display refresh Rate

Hz

>480Hz

驅動模式?Driving Mode

?

靜態 Static

輸入電源?Power Supply

?

AC200-240V? 50-60Hz

工作溫度?Operation Temperature

-20 to +60

工作濕度?Operation Humidity

RH

10% - 90%

防護等級?Protection Rating

IP

IP65

最大功耗Screen Consumption (Max.)

KW/

970

平均功耗?Screen Consumption

KW/

570

模組尺寸(W*H

mm

768×576
