- Functional Description
- Specifications
- Applications

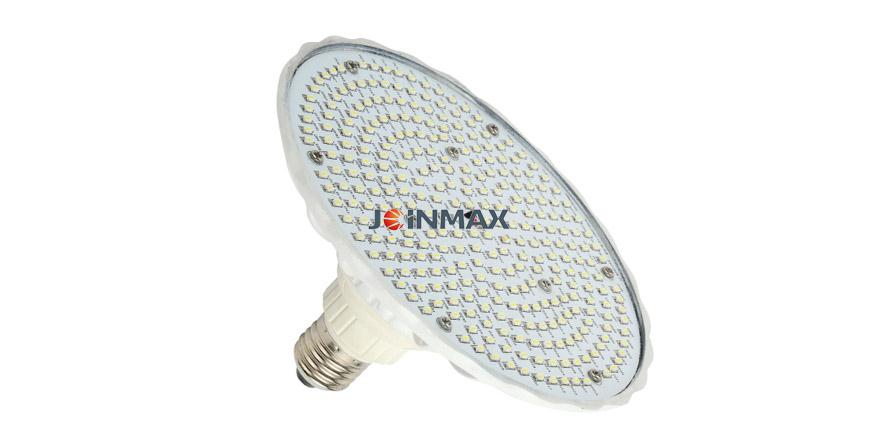

1. The outer shell is made extruded aluminum structure and looks stylish, standard E27 light cap suitable for the courtyard light in living area, campus and scenic places.
2. Employ low-power SMD LED with good light-strength and soft light
3. Employ highly-effective constant current drive power with the characteristics of energy-saving, safety and long working-life
?技術分類Technical?Classification | 項目規格Item | 參數Parameter |
電氣性能Electrical?Properties | 供電電壓Input?voltage | AC100-240V，50-60Hz |
最大功耗Max.power?consumption | 20W | |
功率因數Power?factor | PF>0.90 | |
諧波失真Harmonic?distortion | THD<15% | |
驅動方式Driving?mode | 內置恒流電源Inbuilt?constant?current?power?supply | |
光學性能Optical?Properties | 光通量Luminous?flux | 大于1800lm?Over?1800lm |
光源色溫Color?temperature | 5700K | |
顯色指數Color?rendering?index | CRI>70 | |
光效Light?efficacy | 大于90?lm/W??Over?90?lm/W? | |
光束角Beam?angle | 向下120°?Horizontal?120°? | |

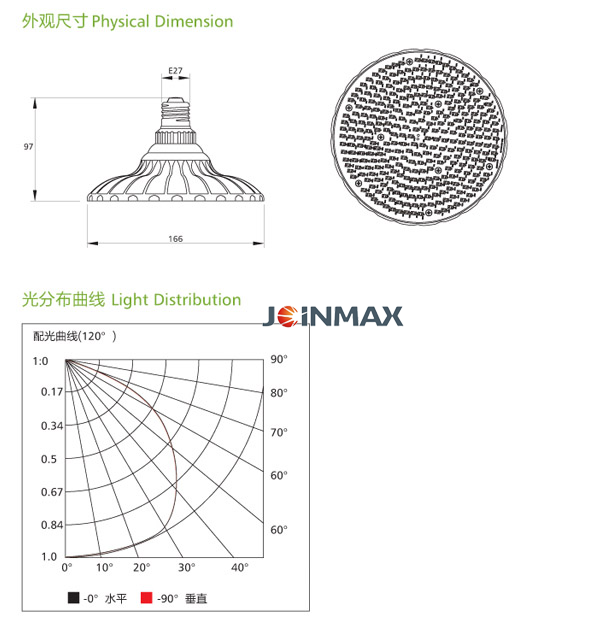

結構性能Structure | 尺寸(高x直徑)?Dimension?(L*D) | 97mmXΦ166mm |
燈頭燈座Lamp?base | E27 | |
燈體材料?Material | 壓鑄鋁?die-casting?aluminium? | |
表面顏色?Surface?Color | 白色?White | |
工作溫度Work?Temperature | -20℃～50℃ | |
工作濕度Work?Humidity | 0～90% | |
使用壽命Life?span | 35000?hour（@70%） | |
使用環境Work?Environment | 室外庭院燈Outdoor | |
安全性能Safety | 認證Certificate | RoHS，CE，CCC |
發光顏色LED?Color | 顯色指數CRI | 光通量Luminous?Flux | 產品編號?Model |
冷白Cold?White?5000K | CRI=70 | 1600lm | JM16-230001RZ |
正白Neutral?White?4000K | CRI=75 | 1500lm | JM16-230001RL |
暖白Warm?White?3000K | CRI=80 | 1400lm | JM16-230001RN |
-
