  • Functional Description
  • Specifications
  • Applications

1. Employ wind-changing heat-dissipation theory with fan, discharge the inside warm airflow out and guarantee the heat-dissipation requirements of LED light source and working-life, the surface of the lamp has been oxidized to protect from corruption and the whole structure is compact and aesthetic.

2. Employ imported high-lightness chip as light source and unique multi-chip group as single module group light source design with characteristics of high heat transmittance, low light decay, pure color and without double-vision

3. Employ high-efficacy LED light source complemented powerpower coefficient 0.98, power efficacy 93%with multiple-chip integrated circuit which reduces over 70% energy compared with traditional ones.

4. Employ special surface manufacturing craft and the effect is superior. Easy installation and disassembly with wide applicable usage.

5. Employ high purified aluminum glass and optic PC as reflecting equipment with wide reflecting

?angle, even lightness, no dazzling light or flash

6.Good color rendering index and more lively demonstration of the real object color, multiple color temperature available to satisfy requirements in different situation and eradicate the depression caused by high or low color temperature, which could make people feel more comforting and enhance efficiency.

7. Employ constant voltage and current control to eradicate the electricity network noise pollution caused by ballast and overcome the visual fatigue caused by unstable light.

8. Green and pollution-free, without any contaminants like lead or mercury

9. Patented product

10.? Compact and light weight

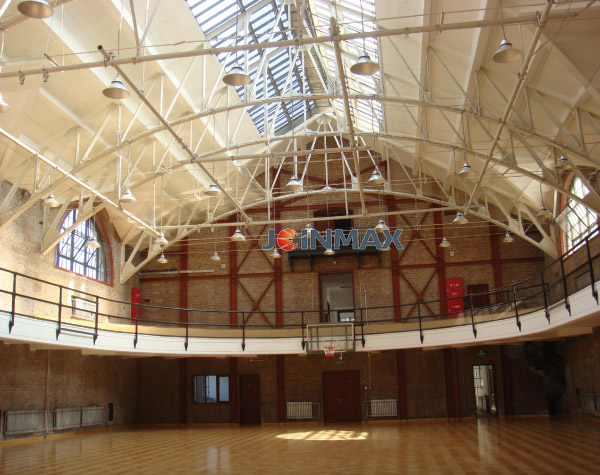

11 Suitable places: factory workshop, factory, warehouse, metro stand, marketplace, big supermarket, gas station, stadium and exhibition

?

技術分類

Technical?Classification

項目規格

Item

參數

Parameter

電氣性能

Electrical?Properties

供電電壓

Input?voltage

AC90-260V/120-277V?

最大功耗?

Power?Consumption

120-160W

光學性能

Optical?Properties

光源組成

Lamp

20顆集成LED

20PCS?integrated?LED?lamps

光通量

Luminous?Flux

1200016000?Im

顯色指數

Color?Rendering?Indes

CRI>75

色溫

Color?temperatare

3000K

光效值

naire?Efficacy

>100lm/w

發光角度

Beam?Angle?

71°

光通維持率

Iuminous?Matintenance?Rade

50000hour(@70%)

結構性能

Structurebyry

尺寸(xx)?

Dimension?(L*W*H)

500xH442mm(掛鉤hang)

500xH400mm(吊盤吸頂Ceiling-mounted)

重量

Weight

2.5kg

燈體材料

Material

鋁合金

Alumimiu?alloy

表面顏色

Surface?Color

銀灰色或白色

Silver?grey?or?white?color

防護等級

Protection?Rating

IP20

工作溫度

Work?Temperature

0℃~50

工作濕度

Work?Humidity

10-90%

使用環境

Work?Environment

干燥無塵

Dry?

安全性能

Safety

認證

Certificate

CE?UL


供電方式

Input?Voltage

發光顏色

LED?Color

產品編號

Model

AC220V

暖白3000K

Warm?White

JM25-301401RN
