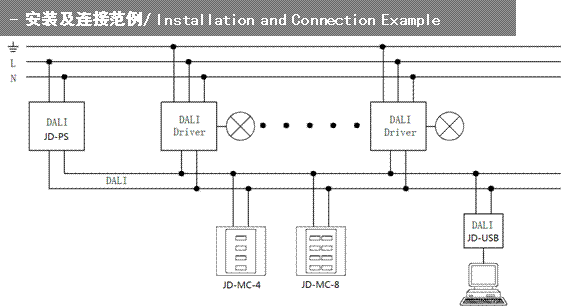

- Applications

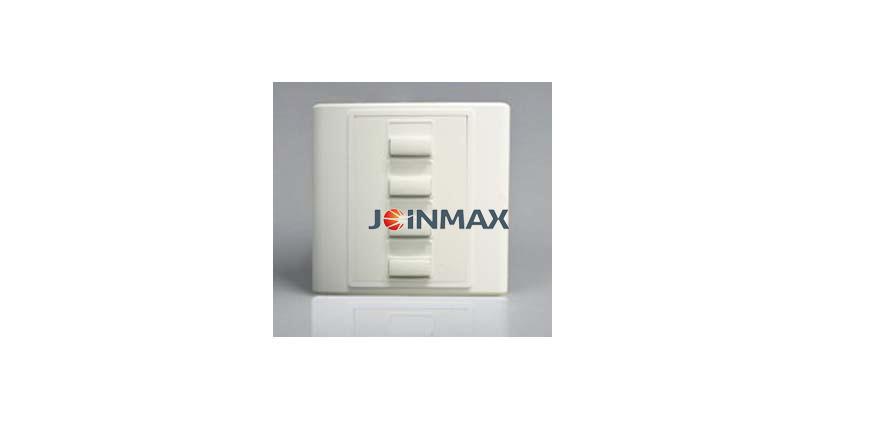

1、4-button lighting control panel with DALI interface
2、Function of each button can be individually configured by software. Control target can be independent address, group address and broadcast. Control function includes instant brightness level, maximum brightness, minimum brightness, turn off, scene recall, brightness step up or step down, etc.
??
型號/Type | JD-MC-4 | ? | 執(zhí)行標(biāo)準(zhǔn)/ Standard |
電源輸入/ Power input | DALI總線/DALI BUS | ||
輸入電流/ Input Current | 6mA | ? | EN 55015 |
按鍵數(shù)量/ Number of buttons | 4 | ? | EN 61347-1 EN 61347-2-11 |

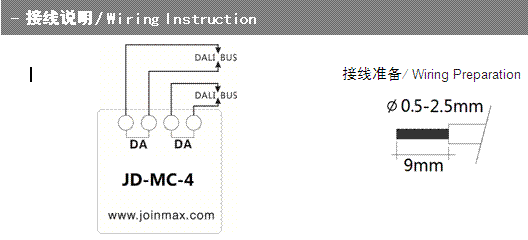

接口/ Interface | DALI | ? | EN 61547 |
按鍵功能/ Key Function | 由軟件獨立配置 /Independently configured by software | ? | IEC60929（DALI V0） IEC62386（DALI V1） |
工作溫度/Operating Temperature | 0～+50℃ | ? | ? |
保存溫度/Storage Temperature | -10～+60℃ | ? | ? |
防護等級/ Degree of protection | IP20 | ? ? | ? |
?
?
-
